WATERAX offers a complete line of high performance portable centrifugal pumps.STRIKER-4™ High-Pressure 4-Stage Fire Pump Diesel
100153

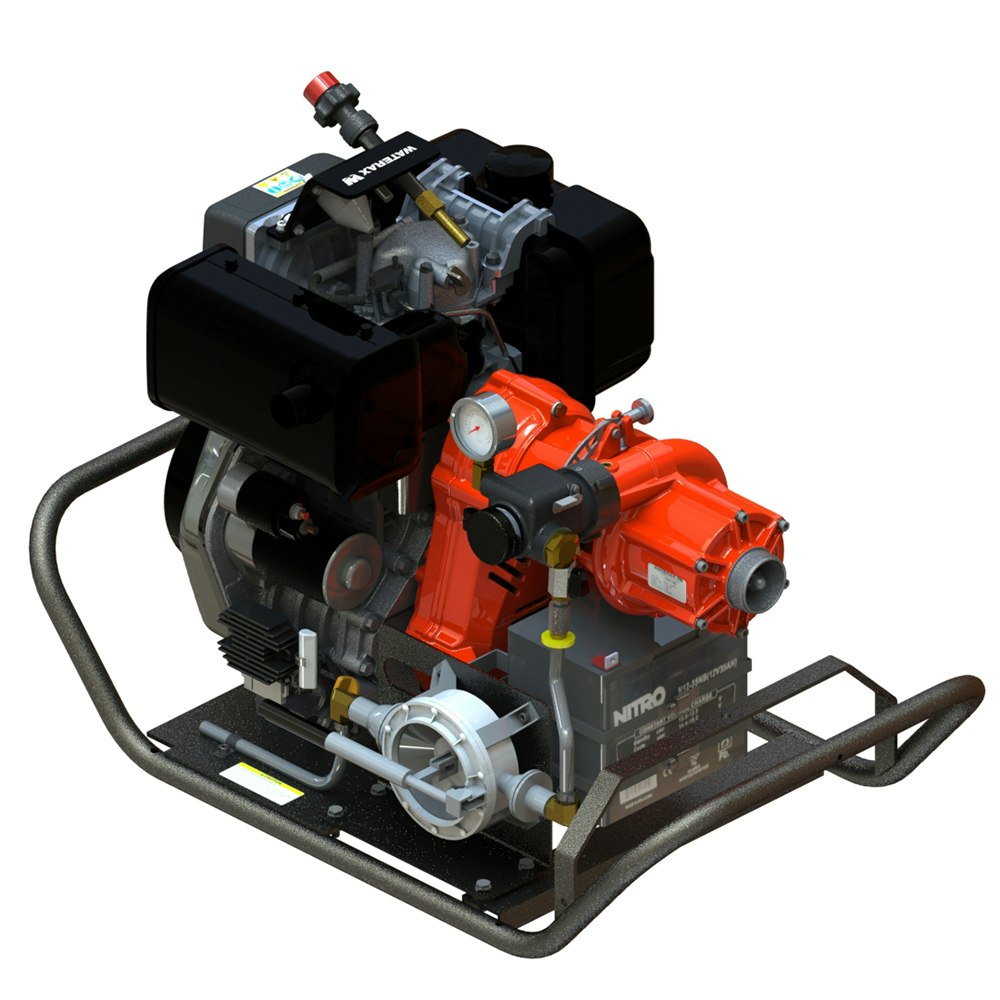

STRIKER-4™ High-Pressure 4-Stage Fire Pump Diesel
100153
The STR4-DY10PETC diesel high-pressure portable fire pump pairs a dependable YANMAR L100 diesel engine-delivering 9.3 HP-with the innovative, lightweight, and highly efficient MARK-3® 4-stage pump end to provide outstanding performance in demanding field conditions.
Engineered for versatility, the STR4-DY10PETC features the signature WATERAX quick-release clamp, enabling rapid pump-end replacement directly in the field.
Fully DCP-compatible in both single and dual control panel setups, it allows engine speed adjustment via a linear throttle actuator.
Maximum pressure
310 PSI (21.4 bar)
Maximum flow
112 US gals/min (424 L/min)
Maximum head
716’ (218 m)
85 GPM (322 lpm) @ 100 PSI (6.9 bar)
65 GPM (246 lpm) @ 150 PSI (10.3 bar)
28 GPM (106 lpm) @ 250 PSI (17.2 bar)
Model and type
DIESEL YANMAR L100
Maximum Power
9.3 hp (6.8 kW) @ 3,600 rpm
Maximum Torque
18.3 lb-ft (24.8 Nm) @ 2,000 rpm
Starting System
Recoil starter and electric start
Type
4-stage, centrifugal pump
Intake
2” (51 mm) NPSH / Victaulic
Discharge
1-1/2” (38 mm) NPSH / Victaulic
206 lbs (93.4 kg)
Base Mount with Industrial Isolators
Timing Belt and Pulley; Speed Increaser 2.12:1
Fuel Tank
1.43 US GAL (5.4L)
FastWire
4' CTRL Cable with DCP connector (Standard)
Controls
Digital Control Panel With Dual Control Panel Option
