STRIKER-4™ High-Pressure 4-Stage Fire Pump Diesel
100151

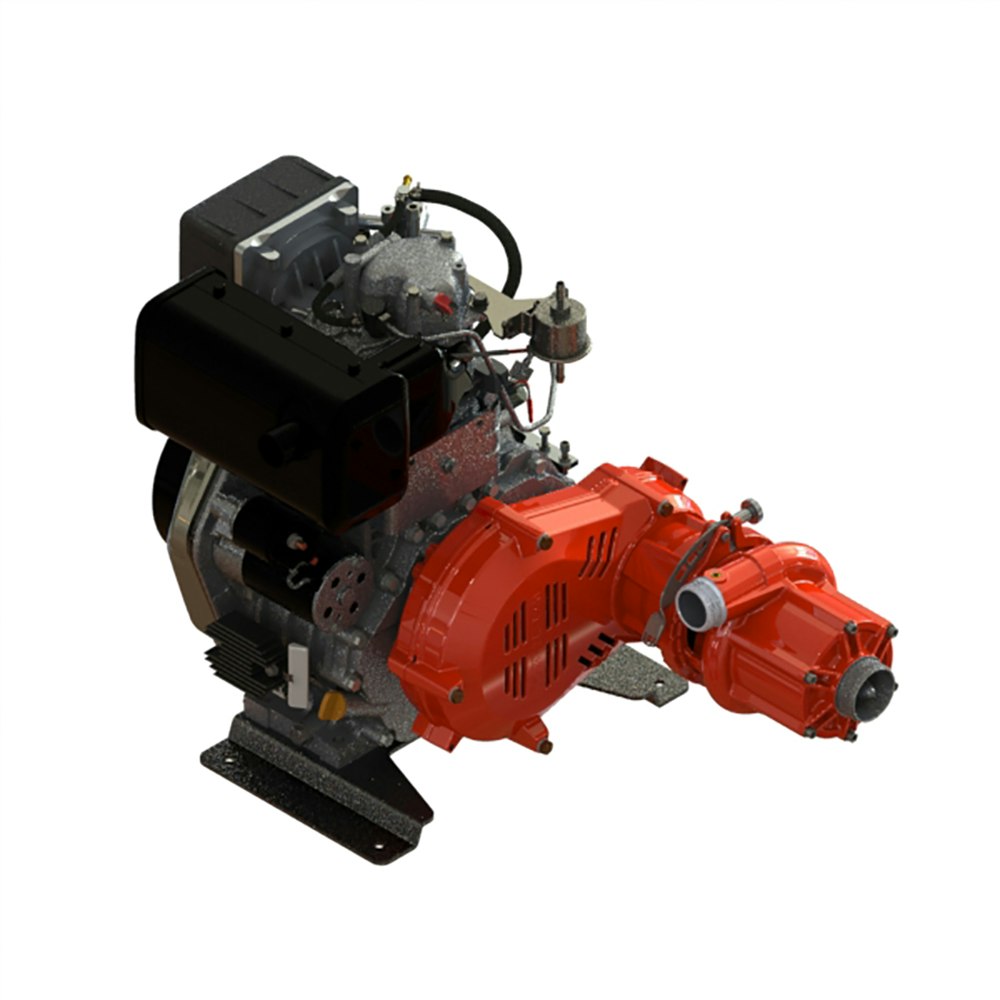

The STR4-DY10H combines a reliable YANMAR L100 diesel engine, producing 9.3 HP, and couples the innovative, lightweight, corrosion-resistant 4-stage pump end from the MARK-3® Watson Edition to deliver exceptional durability and operating-range performance in demanding environments.
The pump is fully compatible with the DCP, supporting both single and dual control panel configurations.
The engine speed can be controlled via the DCP through the use of a linear throttle actuator.
Maximum pressure
310 PSI (21,4 bar)
Maximum flow
112 US gals/min (424 L/min)
Maximum head
716’ (218 m)
85 GPM (322 lpm) @ 100 PSI (6.9 bar)
65 GPM (246 lpm) @ 150 PSI (10.3 bar)
28 GPM (106 lpm) @ 250 PSI (17.2 bar)
Model and type
DIESEL YANMAR L100
Maximum Power
9.3 hp (6.8 kW) @ 3,600 rpm
Maximum Torque
18.3 lb-ft (24.8 Nm) @ 2,000 rpm
Starting System
Recoil starter and electric start
Type
4-stage, centrifugal pump
Intake
2” (51 mm) NPSH / Victaulic
Discharge
1-1/2” (38 mm) NPSH / Victaulic
160 lbs (72.6 kg)
Base Mount with Industrial Isolators
Timing Belt and Pulley; Speed Increaser 2.12:1
Fuel Tank
1.43 US GAL (5.4L)
FastWire
4' CTRL Cable with DCP connector (Standard)
Controls
Digital Control Panel With Dual Control Panel Option
