Products
WATERAX offers a complete line of high performance portable centrifugal pumps.STRIKER-4 High-Pressure 4-Stage Fire Pump
100166

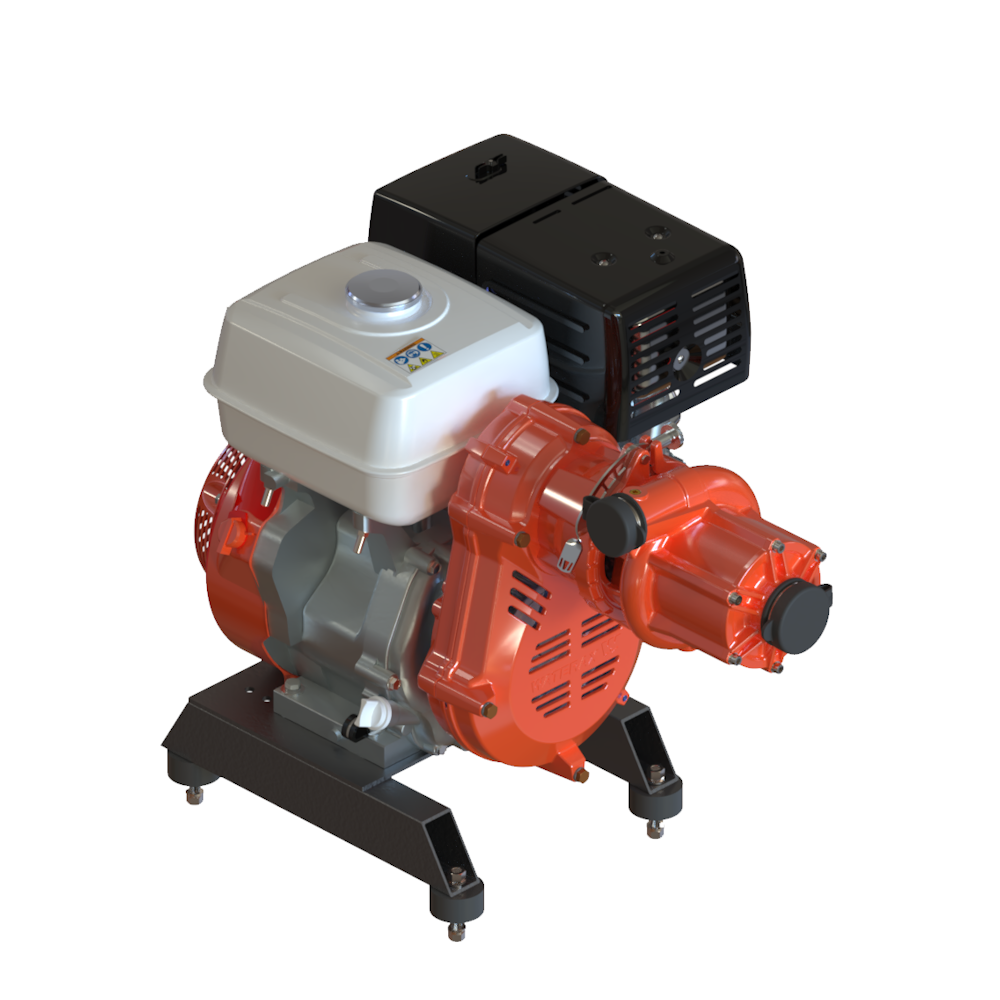

STRIKER-4 High-Pressure 4-Stage Fire Pump
100166
The STR4-13V pairs a reliable Honda 4-stroke 11.7 HP engine with the innovative, lightweight, corrosion-resistant 4-stage pump end from the MARK-3® Watson Edition to deliver exceptional durability and operating-range performance in demanding environments.
Maximum pressure
310 PSI (21.4 Bar)
Maximum flow
118 US gals/min (447 L/min)
Maximum head
715' (218 m)
111 US GPM (420 L/min) @ 100 PSI (6.9 Bar)
92 US GPM (347 L/min) @ 150 PSI (10.3 Bar)
49.4 US GPM (192 L/min) @ 250 PSI (17.2 Bar)
Model and type
Honda GX390 Series 4-cycle, horizontal shaft, single cylinder, OHV
Maximum Power
11.7 HP (8.7 kW) @ 3600 RPM
Maximum Torque
19.5 lb-ft (26.4 Nm) @ 2500 RPM
Starting System
12 VDC electric with manual recoil backup start
Type
Detachable, 4-Stage, Centrifugal Pump
Intake
2" (51 mm) NPSH
Discharge
1-1/2" (38 mm) NPSH
125 lbs (57 kg)
Vehicle Mount : Black flat base with tubular horizontal legs
Reinforced flexible gear coupling
Muffler
Forestry Approved Spark Arrestor Optional
FastWire
FastWire quick connect
Controls
Engine choke, throttle, and fuel valve control levers; keyed start switch; and low oil pressure alert lamp and shutdown.
